AP6 Professional

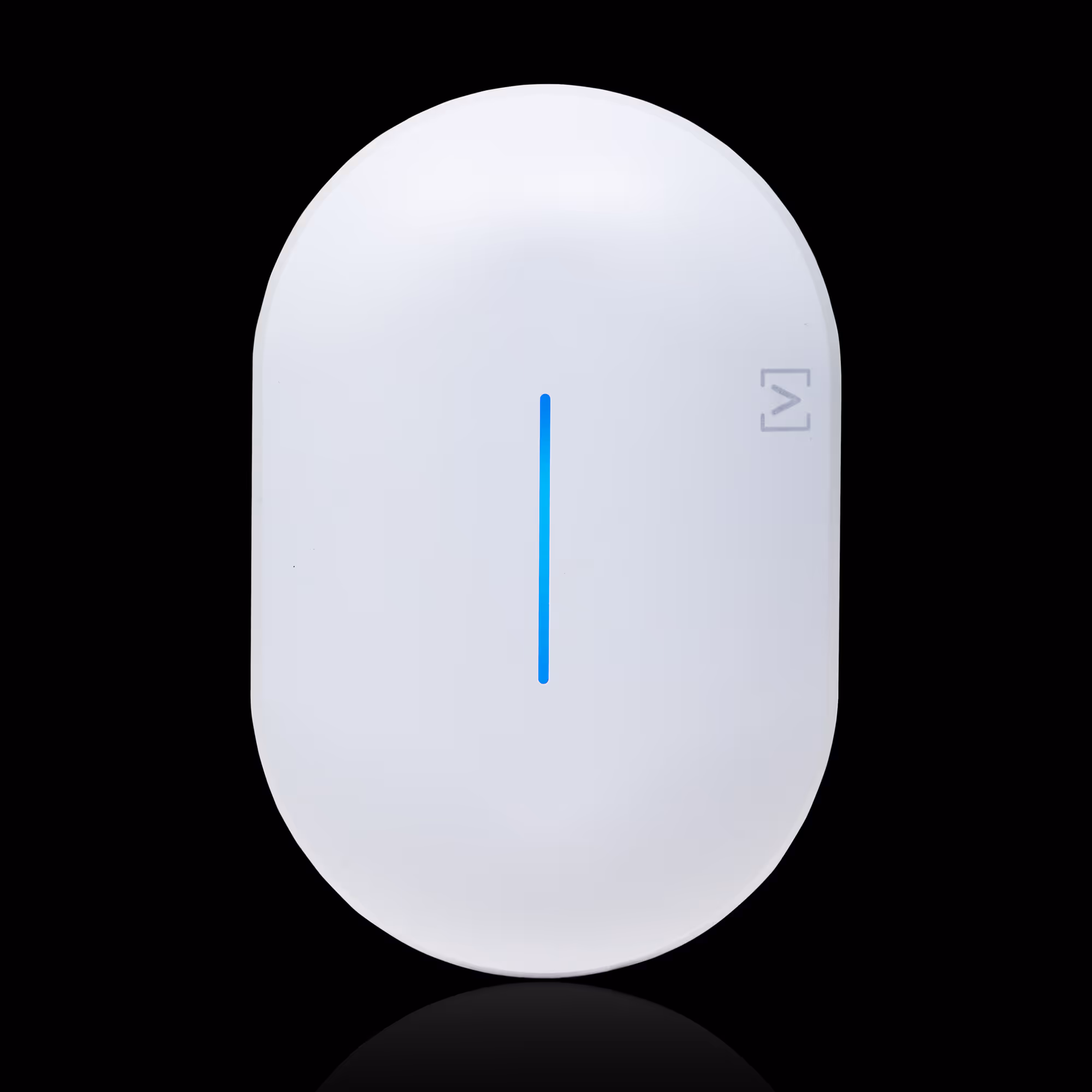

The Alta Labs AP6-Pro Access Point features a compact form factor and a sleek aesthetic design allowing seamless integration into corporate, commercial, and residential environments.
WiFi 6 With WiFi 7 Benefits
Superior Range and Performance
5 GHz: 4x4, DL/UL MU-MIMO, 2.4 GHz 2x2 DL/UL MU-OFDMA
IP54 Rated
AltaPass™ Multi-Password Technology
Scalable Cloud-Based Management
Mobile App
DPI Engine
Hotspot Functionality
On-The-Fly Changes and Scanning
SSID Broadcasting Flexibility

Elevated Design & Experience

The Alta Labs AP6-Pro Access Point features a compact form factor and a sleek aesthetic design allowing seamless integration into corporate, commercial, and residential environments.

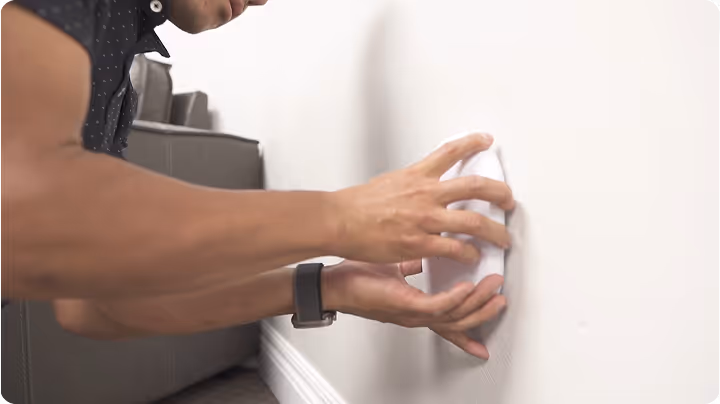

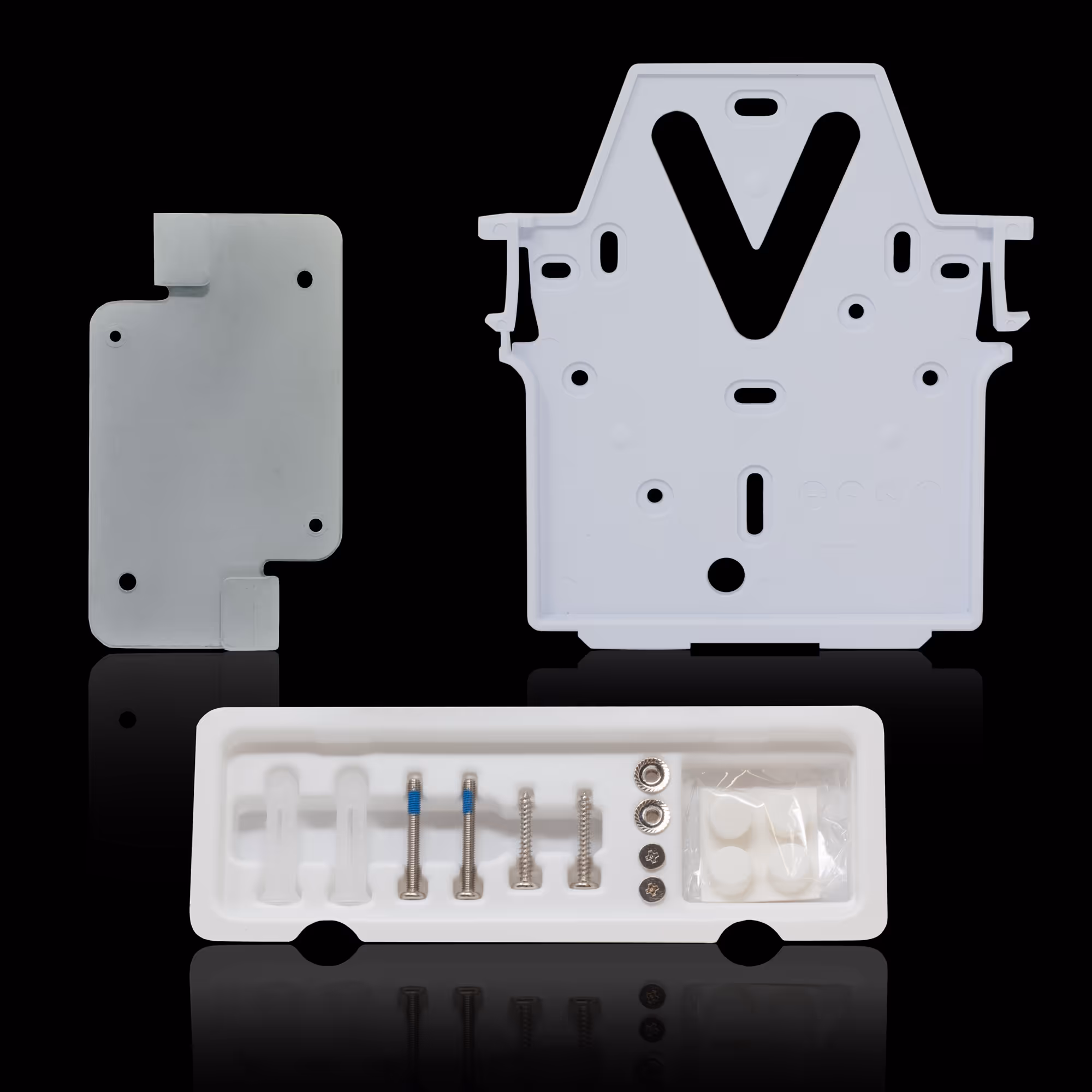

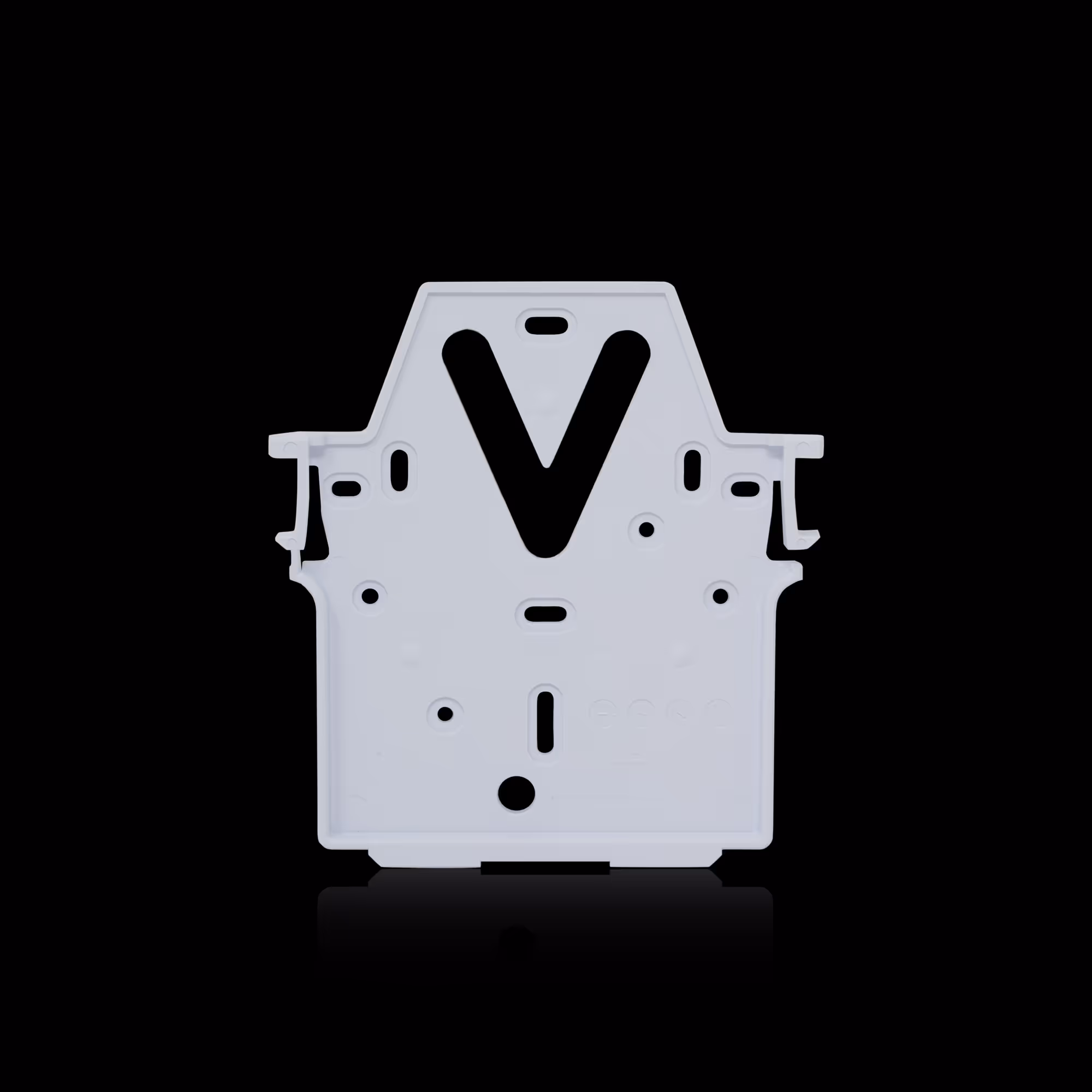

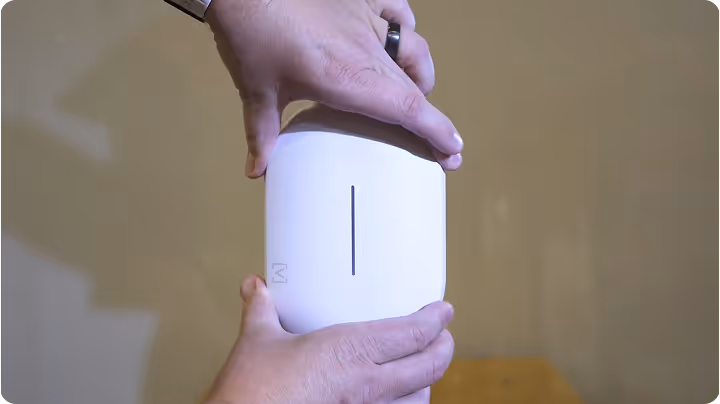

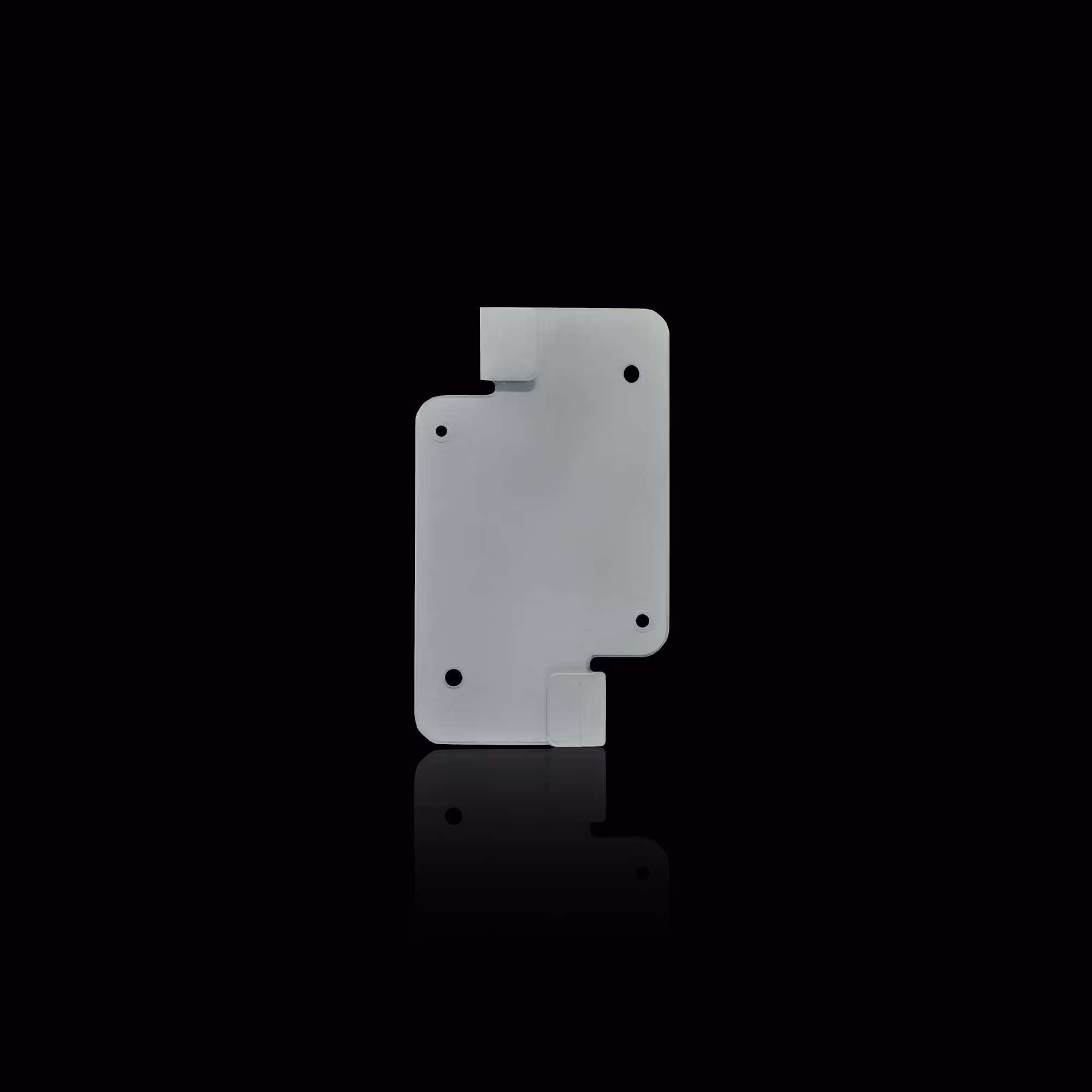

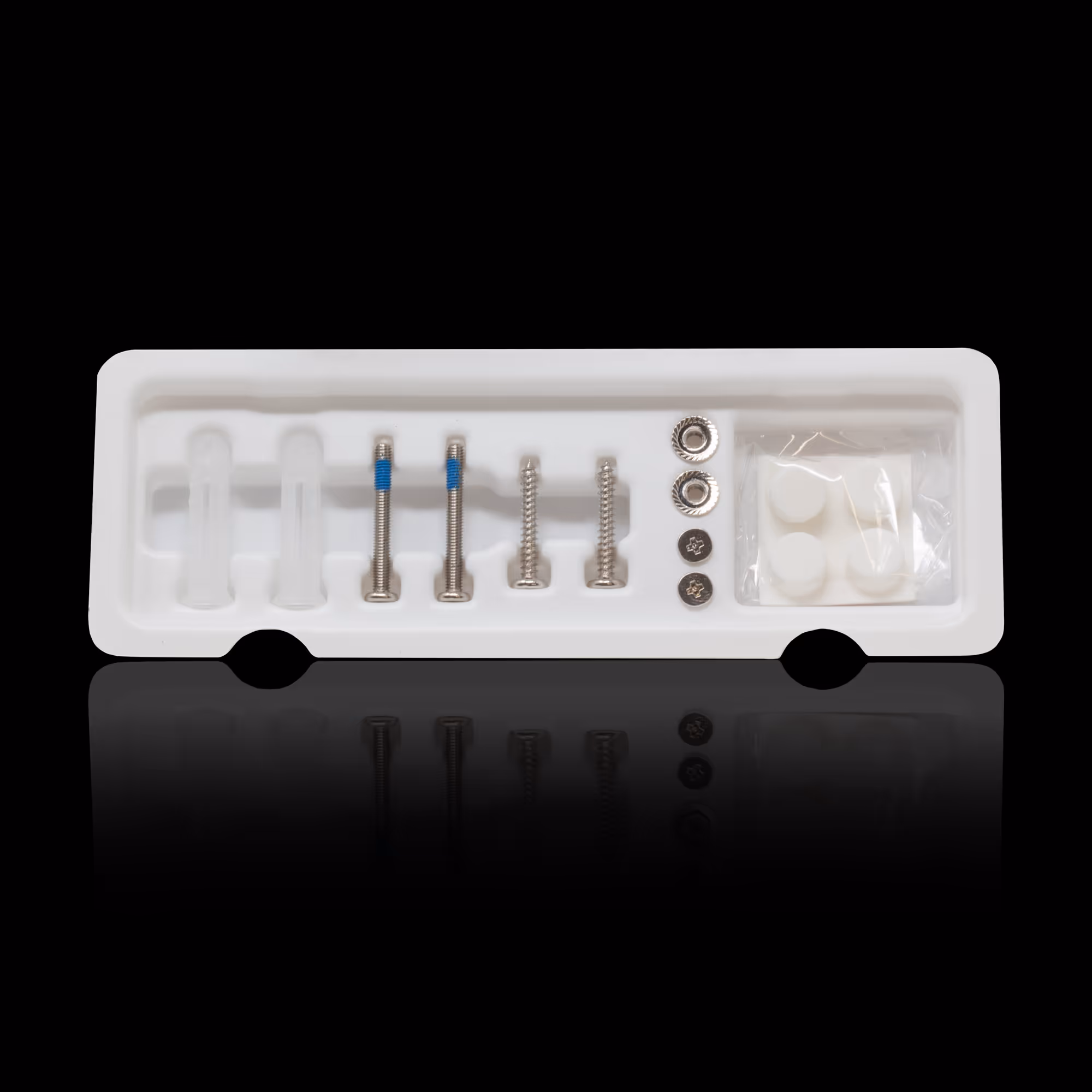

The AP6-Pro is IP54-rated for higher end commercial environments. The AP is powered over Ethernet for simple, clean installation. Versatile mounting hardware featuring our proprietary QuickMount™ technology for quick, simple mounting.

WiFi 6 with WiFi 7 Benefits

Built on an innovative new dual-band, 6 stream, WiFi 6 networking platform from Qualcomm®, the AP6-Pro incorporates 4096 QAM, one of the primary features of WiFi 7, providing a combined 6.3 Gbps of WiFi capacity.

Superior Range and Performance

Our proprietary antenna design provides superior range and performance. The AP6-Pro features four 5 GHz antennas, a design that helps the AP6-Pro outperform 2x2 APs by an over 30% throughput increase in many cases.

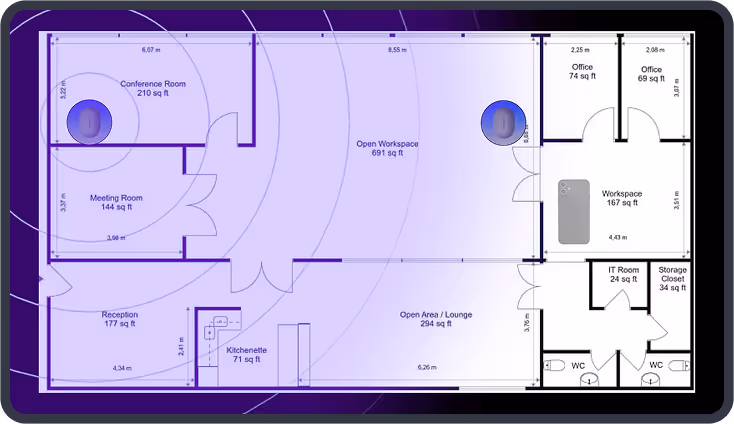

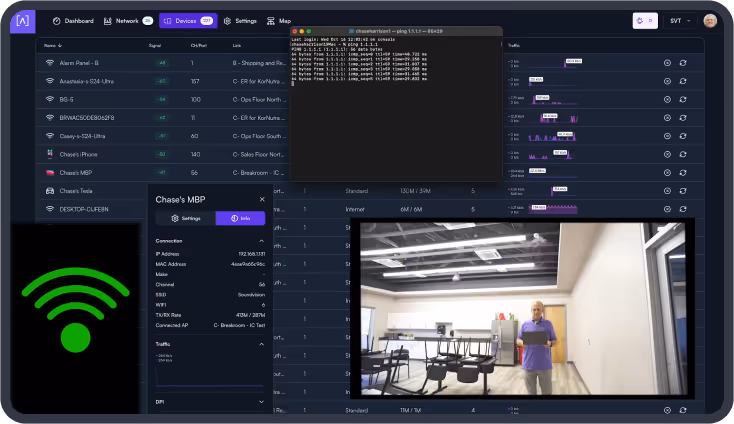

Seamless roaming is fully automatic with support for the 802.11 k, v, and r standards. The AP6-Pro utilizes intelligent mesh formation for maximum throughput.

Scalable Cloud-Based Management

Alta Labs provides an intuitive and easy-to-use cloud-based management interface for Alta Labs access points and switches. Designed for optimum scalability using a high-availability architecture for the ultimate in convenience and worldwide accessibility.

Built on a worldwide content delivery network to optimize response and latency, our global cloud infrastructure ensures geographically optimized connectivity through our redundant network.

Deploy and manage multiple sites quickly and easily. Add, delete, or rename sites instantly. Toggle between sites from a site selection drop-down. Each site contains its own data set.
Learn More

IP54 Rated

The AP6-Pro is IP54 rated, offering strong protection against solids such as dust in a commercial environment, and a limited level of water resistance from water spray, allowing the AP to be installed outdoors under eaves or overhangs.

Mobile App

Monitor and manage your networks from the convenience of your mobile device using the Alta Networks app. Sign up for an Alta Labs account using just your name, email, and password or sign in using your Google or Apple account.
Learn More

Advanced Filtering - DPI Engine

By incorporating this feature directly in the access points, there is no need to purchase additional hardware to take advantage of this powerful tool.
The Alta Labs access points have a powerful built-in Deep Packet Inspection (DPI) engine.
  • Restrict access to websites, applications, or application types. Filter settings are easily applied in the Alta Labs web management interface.
  • Select applications or application types in the Block Applications drop-down menu.
  • Block websites by typing in their domain names in the Block Domains field.

Device Specific Exceptions

For instances where specific devices should not have their content filtered, adhere to a schedule, or bypass a hotspot, admins can allow individual devices to bypass the filter, schedule, and/or hotspot settings.

AltaPass™ Multi-Password Technology

AltaPass is a unique Alta Labs feature that allows clients to connect to the same wireless network SSID using different passwords. Clients are provided with different network and internet access levels based on the password they use to connect to the network.

When a password is created, select from one of the predefined standard use cases. The password can then also be associated with a specific upload or download rate, a VLAN, or set to bypass the filtering rules, the hotspot functionality, or to ignore the schedule.
  • Standard/Small - Typical network with less than 100 WiFi clients/devices
  • Large - Optimized for hundreds to thousands of WiFi clients/devices
  • IoT - Restricted to Internet and local incoming connections only
  • Internet only - Restricted to Internet only
  • Guest - Restricted to Internet and IoT devices
Learn More

Hotspot Functionality

Built-in functionality to create your own local hotspot with a logo, title page, terms of service, and a final landing page.

You also have the option to redirect to an external captive portal.

On-The-Fly Changes and Scanning

  • Configuration changes do not require a reboot of your network. Changes can be made without taking your network down.
  • Scan your AP environment without disrupting your WiFi network.

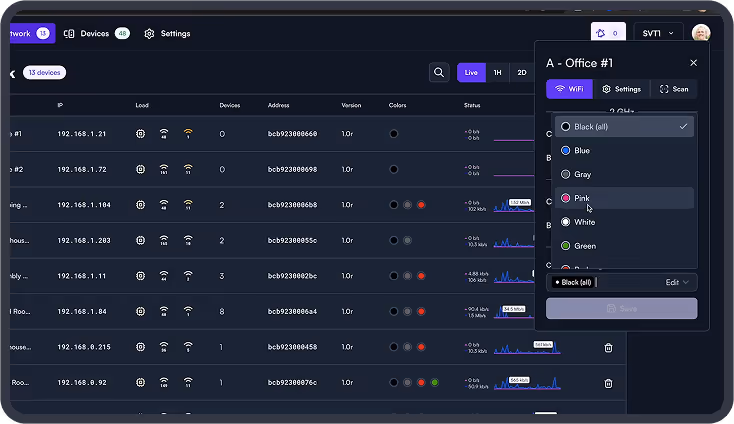

Wireless Network Color Coding

Patent pending functionality that allows you to assign groups to wireless SSIDs and then assign membership to wireless access points.

SSID Broadcasting Flexibility

In addition to standard functionality such as hiding your SSID, you can continue broadcasting your SSID during a “scheduled off” event.

This provides network admins with the ability to grant users additional time on the network. A user can request access via a captive portal displayed when they try to access the network.

Status Snapshots

View upload and download throughput with a visual timeline on the dashboard for each AP displayed along with the number of connected devices, average processor load, channel load, and average connected devices.

Select a snapshot of the last minute, last hour, last two days, or last two months.

Customizable Dashboard

Customize your dashboard with the information you want to see: IP address, Load, number of devices, MAC address, firmware version, wireless network color assignment, and real-time status details. Details are sortable by column.

Device Cards

Easily view connection details and configure your access points or client connections by clicking the device icon.
Mechanical
Dimensions
190mm (7.5") x 125mm (4.9") x 32mm (1.25")
Weight
0.4 kg (0.9 lbs)
Mount Material
Top Cover: Polycarbonate, Bottom Cover: Milled Aluminum
Mount Material
Ceiling/Wall: Polycarbonate, Drop Ceiling: Steel
Weather Proofing
IP54
Hardware
Network Interface
Ethernet, WiFi, Bluetooth
Management Interface
(1) GbE RJ45 Port
Button(s)
Reset / Factory Reset
LED
Blue, White
Power Method
PoE+
Power Supply
PoE+ enabled network switch 48V, 0.5A PoE adapter (optional)
Supported Voltage Range
42.5 - 57V DC
Maximum Transmit Power
2.4 GHz: 23 dBm @2NSS, 5 GHz: 26 dBm @4NSS
MIMO
2.4 GHz: 2 x 2, 5 GHz: 4 x 4
Throughput Rate
2.4 GHz: Up to 573 Mbps, 5 GHz: Up to 5.8 Gbps
Antenna Gain
2.4 GHz: Up to 3.3 dBi, 5 GHz: Up to 4.3 dBi
Mounting
Wall, ceiling, drop-ceiling, table top
Operating Humidity
5 to 95% Noncondensing
Certifications
CE, FCC, IC
Software
WiFi Standards
801.11a/b/g/n/ac/ax, WiFi4/WiFi5/WiFi6
Roaming
802.11r/k/v
Wireless Security
WPA2-PSK, WPA2-SAE, WPA-Enterprise (WPA2/WPA3)
Multi-BSSID
Supported
VLAN
802.1Q
Advanced QoS
802.11e
Guest Traffic Isolation
Supported
Concurrent Clients
350+
Zero Wait DFS
Yes
Intelligent WiFi Scheduling
Yes
Painless Hotspot Setup
Yes
Scale From Home to SMB to Stadium
Yes
Seamless Per-Client Settings
VLAN, Device Type, Rate Limit, Hotspot/Schedule Exception
Supported Data Rates
802.11a/g
6 Mbps to 54 Mbps
802.11b
1 Mbps to 11 Mbps
802.11n
6.5 Mbps to 300 Mbps (Up to MCS 31)
802.11ac
6.5 Mbps to 3.4 Gbps (Up to MCS 9)
802.11ax
2.4 GHz: Up to 573 Mbps, 5 GHz: 6.5 Mbps to 5.8 Gbps (Up to MCS 13)
